VIEWSONIC 216" All-in-One Direct View

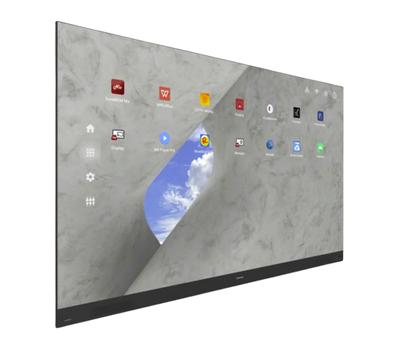

216” All-in-One Direct View LED Display

• Impressively large, bezel-free visual experiences
• All-in-One design without complicated setup
• Real-to-life colors and high brightness
• Immersive audio from built-in Harman Kardon speakers
• Adaptable and flexible to suit any display scenario
• Effortless full-front maintenance

• Screen Size: 216''
• Display Area (mm): 4800 (H) x 2700(V)
• Native Resolution: 1920x1080
• Panel Technology: Direct view LED
• LED Package Type: SMD 3 in 1
• Bonding Wire: Gold
• Pixel Pitch (mm): 2.50
• Refresh Rate: 4440Hz
• Brightness (max.): 600 nits (8 levels adjustable)
• Contrast Ratio (typ.): 6000:1
• Orientation: Landscape / Portrait
• Viewing Angles (typ.): H = 160, V = 160
• LED Lifetime (typ.): 100,000 Hours
• Local Storage: Total 64GB (56GB available storage)
• Embedded OS: Android 9.0
• Resolution Support: VGA(640 x 480) to 1080p(1920 x 1080)
• HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
• Horizontal Frequency: 23-120 kHz
• Vertical Scan Rate: 15-135 Hz
• Input
• HDMI: x6(HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2, HDMI 2.0 internal x1)
• USB Type A: x3(USB2.0 x3)
• RJ45 Input (Internet): x1
• IR in: x1
• Wi-Fi Input: 2.4G/5G Hz
• USB Type C: x1(Video input、 Power output (5V/2A))
• Audio-in (3.5mm): x1
• HDBaseT: x1(1080P@100m、4K30Hz@70m)
• Output
• HDMI out: x2(HDMI 2.0 external x1,internal x1)
• Speaker: 20W x2 (harman kardon)
• Audio out (3.5mm): x1
• USB Type A (Power): Shared with USB input(5V/1.5A x3)
• Control
• RJ45 (LAN control): x1(shared with internet)
• USB Type A (Services): x1(shared with USB A input)
• RS232 (DB 9-pin female): x1
• IR Receiver: x1
• Others
• Power Supply Voltage: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz(vary by country)
• Power Consumption: 3430W (typ), 4900W (max)< 0.5W (Sleep), < 0W (Off)
• Operating Temperature: 0~40℃
• LED Module Quantity: 128
• Ingress Protection Rating: IP30
• Net Weight: 640 lbs(290 kg)
• Gross Weight: 883 lbs(400 kg)
• Screen Dimensions (WxHxD): 189.4x111x1 inches(4810 x 2820 x 25 mm)
• Screen Dimensions (WxHxD) with wall mount: 189.4x111x2.2 inches(4810 x 2820 x 57 mm)
• Packing Dimensions: 109.4x27.95x37 inches(2780 x 710 x 940 mm)
• Standard Accessories
• Power Cord: x2
• LAN Cable (Cat 5A): x1 (5m)
• IR Extender Cable: x1(3m)
• Remote Control: x1
• QSG: x1
• Wall Mount: x1
• Spare Parts: LED PCB Unit x7
• Maintenance Tool: LD-MK-001 x1
• Optional Accessories
• Maintenance Tool: LD-MK-001
• ViewBoard Cast Button(USB-C): VB-WPS-001
• ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
